Rocker Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RR11122FWCSWITCH ROCKER SPST 15A 125V |
17,082 | - |
|
Datasheet | RR1 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Round | Black | ON OFF, Vertical | - | - | Solder, Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | -40°C ~ 105°C | - |
|
RA1122CWCSWITCH ROCKER SPST 15A 125V |
3,364 | - |
|
Datasheet | RA | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Solder, Quick Connect - 0.187" (4.7mm) | - | - | - | -40°C ~ 105°C | cULus |
|

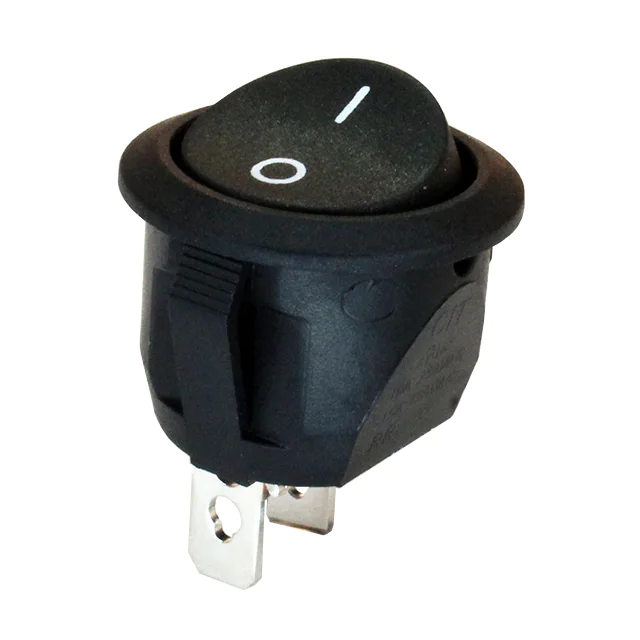

RR11122CWCSWITCH ROCKER SPST 15A 125V |
3,168 |
1+：$0.91200 10+：$0.79040 25+：$0.74560 50+：$0.71344 200+：$0.65284 400+：$0.62446 600+：$0.60842 1000+：$0.58877 |
|
Datasheet | RR1 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Round | Black | O - | - | - | Solder, Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | -40°C ~ 105°C | - |
|
RA1122DWCSWITCH ROCKER SPST 15A 240VAC |
131 | - |
|
Datasheet | RA | Bag | Active | Panel Mount, Snap-In | SPST | Off-On | 15A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | Rectangular - 19.40mm x 13.00mm | -40°C ~ 85°C | cULus, UL |
|

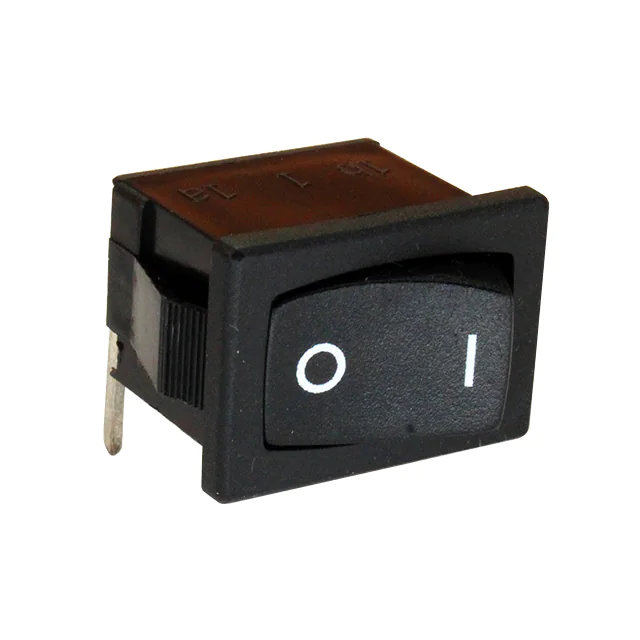

RA1122DWRSWITCH ROCKER SPST 15A 125V |
1,099 | - |
|
Datasheet | RA | Bulk | Active | Panel Mount, Snap-In, Right Angle | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | PC Pin | - | - | Rectangular - 19.40mm x 13.00mm | -40°C ~ 105°C | cULus |
|
|
RC1122DWCSWITCH ROCKER SPST 12A 250VAC |
665 |
1+：$1.32800 10+：$1.14800 25+：$1.08288 50+：$1.03584 200+：$0.94792 400+：$0.90666 600+：$0.88334 1000+：$0.85477 |
|
Datasheet | RC | Tray | Active | Panel Mount, Snap-In | SPST | Off-On | 12A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | Rectangular - 19.50mm x 13.00mm | -40°C ~ 85°C | cURus |
|
RA1122XCGSWITCH ROCKER SPST 15A 125V |
173 | - |
|
Datasheet | RA | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | No Marking | LED, Green | - | Solder, Quick Connect - 0.187" (4.7mm) | - | - | - | -40°C ~ 105°C | cULus |
|
|
RR211223TCRSWITCH ROCKER SPST 15A 125V |
192 | - |
|
Datasheet | RR2 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Round | Black | No Marking | LED, Red | 2.1 VDC | Solder, Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | -20°C ~ 70°C | - |
|

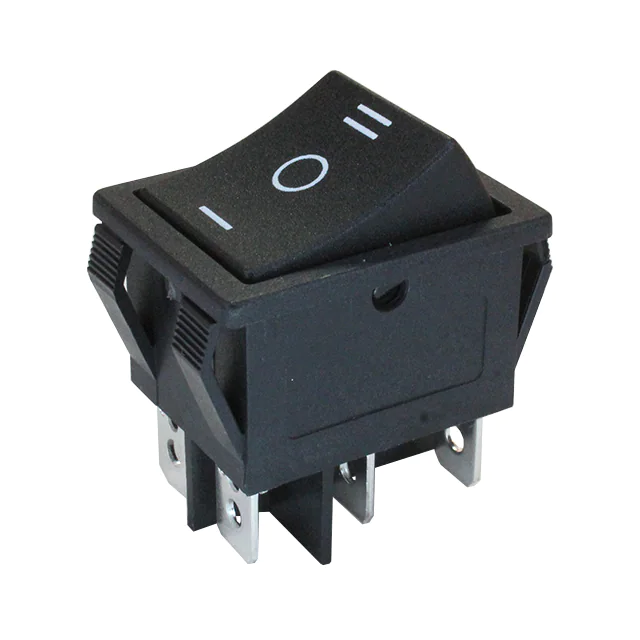

RW2622IWCSWITCH ROCKER DPDT 20A 120V |
690 | - |
|
Datasheet | RW | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 20A (AC) | 120 V | - | Concave (Curved) | Black | I O II | - | - | Solder, Quick Connect - 0.250" (6.3mm) | IP40 | - | Rectangular - 30.20mm x 22.25mm | -30°C ~ 80°C | cULus |
|
ASR11R112BQSWITCH ROCKER SPDT 5A 120V |
1,756 | - |
|
Datasheet | ASR | Bulk | Active | Panel Mount, Flange | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Rectangular - 17.96mm x 10.62mm | -40°C ~ 85°C | cULus |
