Rocker Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RR11122ACSWITCH ROCKER SPST 15A 125V |
117 | - |
|
Datasheet | RR1 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Round | Black | No Marking | - | - | Solder, Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | -40°C ~ 105°C | - |
|
RA1122XCRSWITCH ROCKER SPST 15A 125V |
115 | - |
|
Datasheet | RA | Bulk | Active | Panel Mount, Snap-In, Right Angle | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | No Marking | LED, Red | - | PC Pin | - | - | Rectangular - 19.40mm x 13.00mm | -40°C ~ 105°C | cULus |
|
RR31123TACN10SWITCH ROCKER SPST 15A 125V |
200 | - |
|
Datasheet | RR3 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Round - Illuminated | Red | No Marking | Neon, Clear | 125 VAC | Solder, Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | -20°C ~ 70°C | - |
|

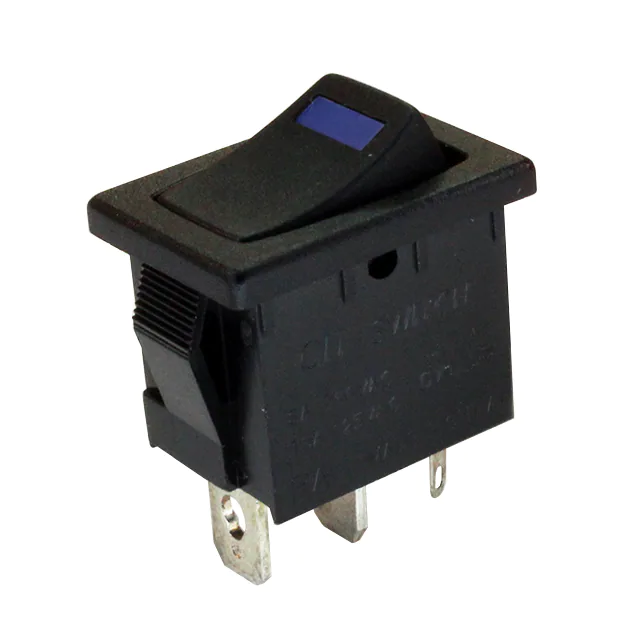

RA1122XCBSWITCH ROCKER SPST 15A 125V |
295 | - |
|
Datasheet | RA | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | No Marking | LED, Blue | - | Solder, Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.00mm | -40°C ~ 105°C | cULus |
|
ANR11R11P2VQESWITCH ROCKER SPDT 5A 120V |
219 | - |
|
Datasheet | ANR | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | - | - | -40°C ~ 85°C | cULus |
|
ANR11R11P2HQESWITCH ROCKER SPDT 5A 120V |
182 | - |
|
Datasheet | ANR | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | - | - | -40°C ~ 85°C | cULus |
|
|
ASR11R11P2CQSWITCH ROCKER SPDT 5A 120V |
281 | - |
|
Datasheet | ASR | Bulk | Active | Through Hole | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | - | - | -40°C ~ 85°C | cULus |
|
|
RR31123TACN20SWITCH ROCKER SPST 15A 125V |
151 |
1+：$1.40000 10+：$1.20720 25+：$1.13888 50+：$1.08960 200+：$0.99700 400+：$0.95360 600+：$0.92906 1000+：$0.89902 |
|
Datasheet | RR3 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Round - Illuminated | Red | No Marking | Neon, Clear | 250 VAC | Solder, Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | -20°C ~ 70°C | - |
|
|
RA1111DBCSWITCH ROCKER SPST 15A 240VAC |
179 | - |
|
Datasheet | RA | Bag | Active | Panel Mount, Snap-In | SPST | Off-On | 15A (AC) | 125 V | - | Concave (Curved) | White | O I | - | - | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | Rectangular - 19.40mm x 13.00mm | -40°C ~ 85°C | cULus, UL |
|
|
RA1122KWCSWITCH ROCKER SPST 15A 240VAC |
196 | - |
|
Datasheet | RA | Bag | Active | Panel Mount, Snap-In | SPST | Off-On | 15A (AC) | 125 V | - | Concave (Curved) | Black | ON OFF, Horizontal | - | - | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | Rectangular - 19.40mm x 13.00mm | -40°C ~ 85°C | cULus, UL |
