Tactile Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

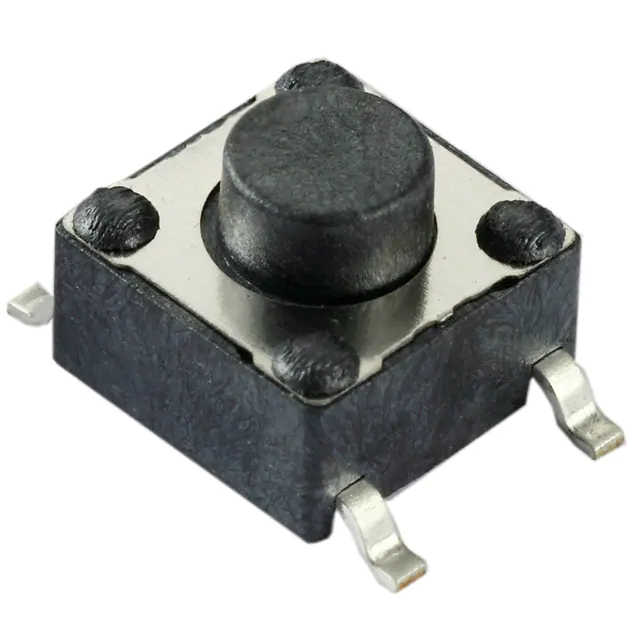

222AMVBARSWITCH TACTILE SPST-NO 0.05A 12V |
65,918 | - |
|
Datasheet | 222A | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 5.00mm | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | Tactile Feedback | -40°C ~ 85°C |
|
PTS815SJM250SMTRLFSSWITCH TACTILE SPST-NO 0.05A 12V |
116,576 |
1+：$0.20800 10+：$0.18400 25+：$0.17184 100+：$0.15432 250+：$0.14307 500+：$0.13501 1000+：$0.12745 |
|
Datasheet | PTS815 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Oval Button | Surface Mount | 2.50mm | - | Top Actuated | J Lead | 4.20mm x 3.20mm | Non-Illuminated | - | - | 180gf | IP40 | - | -40°C ~ 90°C |
|
|
PTS815SJK250SMTR LFSSWITCH TACTILE SPST-NO 0.05A 12V |
12,078 | - |
|
Datasheet | PTS815 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Oval Button | Surface Mount | 2.50mm | - | Top Actuated | J Lead | 4.20mm x 3.20mm | Non-Illuminated | - | - | 250gf | IP40 | - | -40°C ~ 90°C |
|
B3F-1000SWITCH TACTILE SPST-NO 0.05A 24V |
26,273 |
1+：$0.28000 10+：$0.23920 25+：$0.22400 100+：$0.20048 250+：$0.18579 500+：$0.17533 1500+：$0.16020 3000+：$0.15167 6000+：$0.14395 |
|
Datasheet | B3F | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -25°C ~ 70°C |
|
1825027-2SWITCH TACTILE SPST-NO 0.05A 24V |
35,630 |
1+：$0.20000 10+：$0.17200 25+：$0.16096 100+：$0.14456 250+：$0.13402 500+：$0.12646 1000+：$0.11937 3000+：$0.10921 5000+：$0.10496 |
|
Datasheet | FSMRAJ | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole, Right Angle | - | 3.15mm | Side Actuated | PC Pin | 7.11mm x 6.60mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 105°C |
|
TL1105DF250QSWITCH TACTILE SPST-NO 0.05A 12V |
3,754 |
1+：$0.19200 10+：$0.16640 25+：$0.15584 100+：$0.13984 250+：$0.12970 500+：$0.12238 1000+：$0.11552 3000+：$0.10567 5000+：$0.10155 |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 13.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 250gf | - | - | -20°C ~ 70°C |
|
PTS645SL43-2 LFSSWITCH TACTILE SPST-NO 0.05A 12V |
39,135 |
1+：$0.21600 10+：$0.18720 25+：$0.17504 100+：$0.15696 250+：$0.14550 500+：$0.13730 2000+：$0.12250 4000+：$0.11598 6000+：$0.11247 |
|
Datasheet | PTS645 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 130gf | - | - | -40°C ~ 85°C |
|
TL1105BF250QSWITCH TACTILE SPST-NO 0.05A 12V |
18,262 | - |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 9.50mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 250gf | - | - | -20°C ~ 70°C |
|
|
PTS636SK25FSMTR LFSSWITCH TACTILE SPST-NO 0.05A 12V |
7,499 | - |
|
Datasheet | PTS636 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount | 2.50mm | - | Top Actuated | SMD (SMT) Tab | 6.00mm x 3.50mm | Non-Illuminated | - | - | 250gf | IP40 | - | -40°C ~ 90°C |
|
EVQ-Q2K03WSWITCH TACTILE SPST-NO 0.02A 15V |
128,369 | - |
|
Datasheet | EVQQ2 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 3.10mm | - | Top Actuated | J Lead | 6.50mm x 6.00mm | Non-Illuminated | - | - | 130gf | - | - | -40°C ~ 85°C |
|
|
PTS647SN50SMTR2 LFSSWITCH TACTILE SPST-NO 0.05A 12V |
516,124 | - |
|
Datasheet | PTS647 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 5.00mm | - | Top Actuated | Gull Wing | 4.50mm x 4.50mm | Non-Illuminated | - | - | 100gf | IP40 | - | -40°C ~ 85°C |
|
CS11028.0F160SWITCH TACTILE SPST-NO 0.05A 50V |
28,001 |
1+：$0.27200 10+：$0.23280 25+：$0.21728 100+：$0.19464 250+：$0.18035 |
|
Datasheet | CS1102 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Standard | Surface Mount | 8.00mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
|
PTS647SM38SMTR2 LFSSWITCH TACTILE SPST-NO 0.05A 12V |
41,091 | - |
|
Datasheet | PTS647 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 3.80mm | - | Top Actuated | Gull Wing | 4.50mm x 4.50mm | Non-Illuminated | - | - | 180gf | IP40 | - | -40°C ~ 85°C |
|
|
PTS647SK38SMTR2 LFSSWITCH TACTILE SPST-NO 0.05A 12V |
12,326 | - |
|
Datasheet | PTS647 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 3.80mm | - | Top Actuated | Gull Wing | 4.50mm x 4.50mm | Non-Illuminated | - | - | 250gf | IP40 | - | -20°C ~ 70°C |
|
|
EVQ-Q2U03WSWITCH TACTILE SPST-NO 0.02A 15V |
22,855 |
1+：$0.20800 10+：$0.18240 25+：$0.17088 100+：$0.15328 250+：$0.14211 500+：$0.13410 1000+：$0.12658 |
|
Datasheet | EVQQ2 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 3.10mm | - | Top Actuated | J Lead | 6.50mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|
EVQ-Q2P02WSWITCH TACTILE SPST-NO 0.02A 15V |
1,726 | - |
|
Datasheet | EVQQ2 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 2.50mm | - | Top Actuated | J Lead | 6.50mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
PTS645SM43SMTR92 LFSSWITCH TACTILE SPST-NO 0.05A 12V |
171,479 | - |
|
Datasheet | PTS645 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | Blue Actuator | -20°C ~ 85°C |
|
|
EVQ-Q2F03WSWITCH TACTILE SPST-NO 0.02A 15V |
58,077 |
1+：$0.22400 10+：$0.19840 25+：$0.18528 100+：$0.16608 250+：$0.15395 500+：$0.14530 1000+：$0.13716 |
|
Datasheet | EVQQ2 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 3.10mm | - | Top Actuated | J Lead | 6.50mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -40°C ~ 85°C |
|
EVQ-P7A01PSWITCH TACTILE SPST-NO 0.05A 12V |
33,474 | - |
|
Datasheet | EVQP7 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | - | Side Actuated | Gull Wing | 4.70mm x 2.90mm | Non-Illuminated | - | - | 220gf | - | - | -20°C ~ 70°C |
|
PTS530 GK055 SMTR LFSSWITCH TACTILE SPST-NO 0.05A 12V |
12,955 | - |
|
Datasheet | PTS530 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Flush | Surface Mount | 0.55mm | - | Top Actuated | Gull Wing | 4.50mm x 4.50mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
