Tactile Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

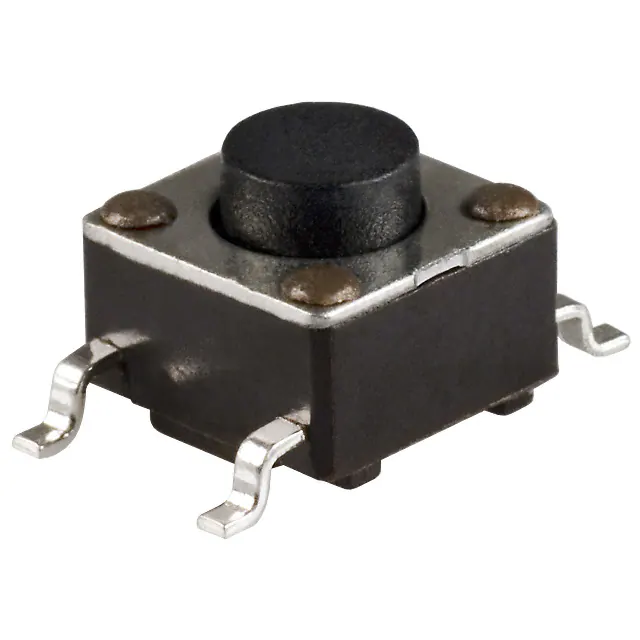

TL3301AF160QGSWITCH TACTILE SPST-NO 0.05A 12V |
68,419 |
1+：$0.27200 10+：$0.23440 25+：$0.21920 100+：$0.19640 250+：$0.18198 500+：$0.17174 |
|
Datasheet | TL3301 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 5.00mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
KMT012 NGJ LHSSWITCH TACTILE SPST-NO 0.05A 32V |
45,352 | - |
|
Datasheet | KMT0 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Surface Mount | 0.65mm | - | Top Actuated | J Lead | 3.00mm x 2.60mm | Non-Illuminated | - | - | 100gf | IP68 - Dust Tight, Waterproof | Tactile Feedback | -40°C ~ 85°C |
|

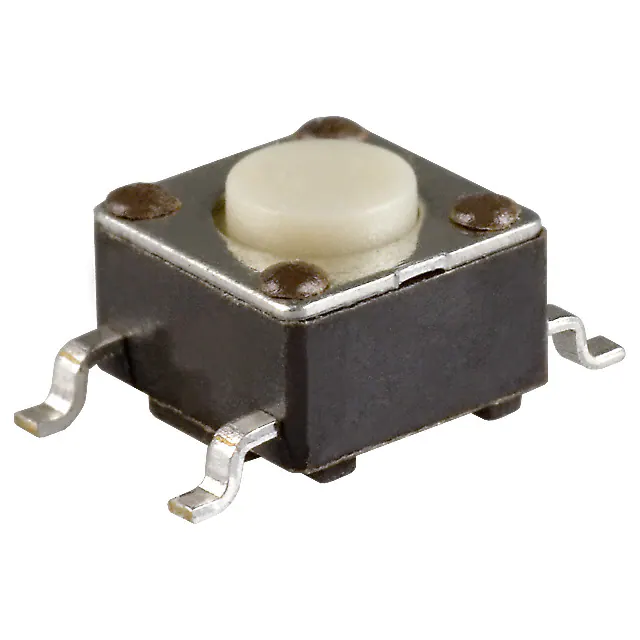

TL3301NF260QGSWITCH TACTILE SPST-NO 0.05A 12V |
38,152 | - |
|
Datasheet | TL3301 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|
FSM2JSMATRSWITCH TACTILE SPST-NO 0.05A 24V |
21,041 | - |
|
Datasheet | FSMJSMA | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -35°C ~ 85°C |
|
B3F-6000SWITCH TACTILE SPST-NO 0.05A 24V |
14,092 | - |
|
Datasheet | B3F | Cut Tape (CT) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -25°C ~ 70°C |
|
TL3301AF260QGSWITCH TACTILE SPST-NO 0.05A 12V |
9,175 | - |
|
Datasheet | TL3301 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 5.00mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|
TL3145BF180QJSWITCH TACTILE SPST-NO 0.05A 12V |
22,014 | - |
|
Datasheet | TL3145 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 5.20mm | - | Top Actuated | J Lead | 6.45mm x 6.45mm | Non-Illuminated | - | - | 180gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|

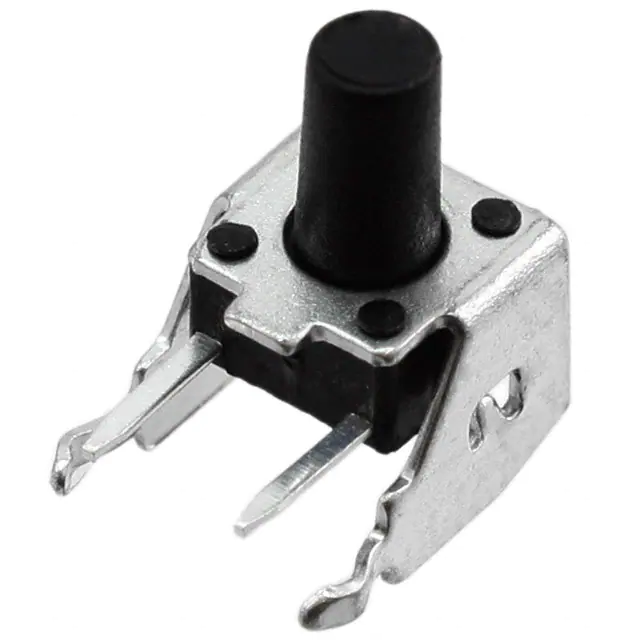

MJTP1236BSWITCH TACTILE SPST-NO 0.05A 12V |
9,444 |
1+：$0.43200 10+：$0.37040 25+：$0.34528 100+：$0.30864 250+：$0.28589 500+：$0.26984 1000+：$0.25497 3000+：$0.23399 5000+：$0.22534 |
|
Datasheet | MJTP | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 8.40mm | Side Actuated | PC Pin | 7.40mm x 7.20mm | Non-Illuminated | - | - | 160gf | - | Tactile Feedback | -20°C ~ 70°C |
|
TL3301FF160QGSWITCH TACTILE SPST-NO 0.05A 12V |
34,758 | - |
|
Datasheet | TL3301 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 7.00mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
TL3301PF160QGSWITCH TACTILE SPST-NO 0.05A 12V |
26,116 | - |
|
Datasheet | TL3301 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 8.50mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
TL1105VF160QSWITCH TACTILE SPST-NO 0.05A 12V |
24,931 | - |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 3.85mm | Side Actuated | PC Pin | 7.10mm x 6.55mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|

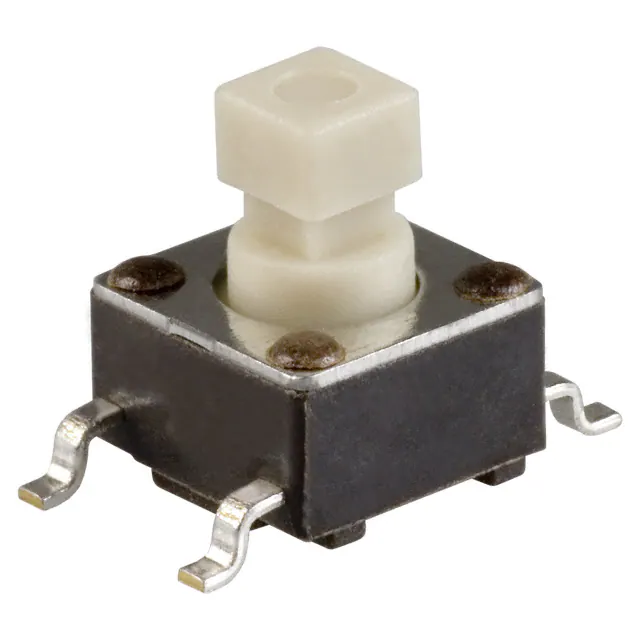

TL3301SPF260QGSWITCH TACTILE SPST-NO 0.05A 12V |
23,201 | - |
|
Datasheet | TL3301 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 7.50mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|
TL3312NF160QSWITCH TACTILE SPST-NO 0.05A 12V |
34,389 | - |
|
Datasheet | TL3312 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Snap Dome | Surface Mount | 0.35mm | - | Top Actuated | SMD (SMT) Tab | 3.70mm x 3.70mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
|
KSC241G LFSSWITCH TACTILE SPST-NO 0.05A 32V |
17,207 | - |
|
Datasheet | KSC | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Surface Mount | 3.50mm | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 350gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
SKRRABE010SWITCH TACTILE SPST-NO 0.05A 12V |
41,047 | - |
|
Datasheet | SKRR | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Flush | Surface Mount | 0.60mm | - | Top Actuated | SMD (SMT) Tab | 7.50mm x 7.00mm | Non-Illuminated | - | - | 163gf | - | - | -40°C ~ 85°C |
|

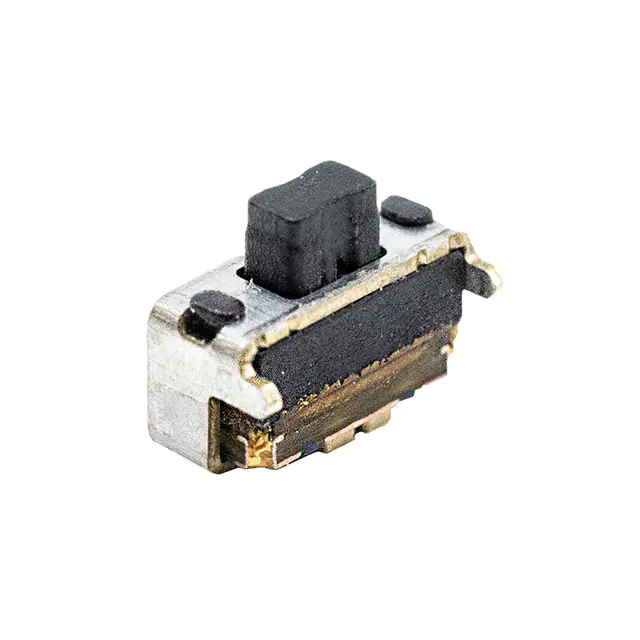

TL6340AF160QSWITCH TACTILE SPST-NO 0.02A 12V |
17,313 | - |
|
Datasheet | TL6340 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | 2.90mm | Side Actuated | SMD (SMT) Tab | 3.85mm x 1.95mm | Non-Illuminated | - | - | 160gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
436331045822SWITCH TACTILE SPST-NO 0.05A 12V |
25,292 | - |
|
Datasheet | WS-TASU | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | - | Side Actuated | SMD (SMT) Tab | 5.50mm x 3.50mm | Non-Illuminated | - | - | 220gf | - | Board Guide | -40°C ~ 85°C |
|
223JMVAARSWITCH TACTILE SPST-NO 0.05A 32V |
19,591 | - |
|
Datasheet | 223J | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Rectangular Button | Surface Mount | 1.90mm | - | Top Actuated | Gull Wing | 4.20mm x 2.80mm | Non-Illuminated | - | - | 300gf | IP67 - Dust Tight, Waterproof | Tactile Feedback | -40°C ~ 85°C |
|

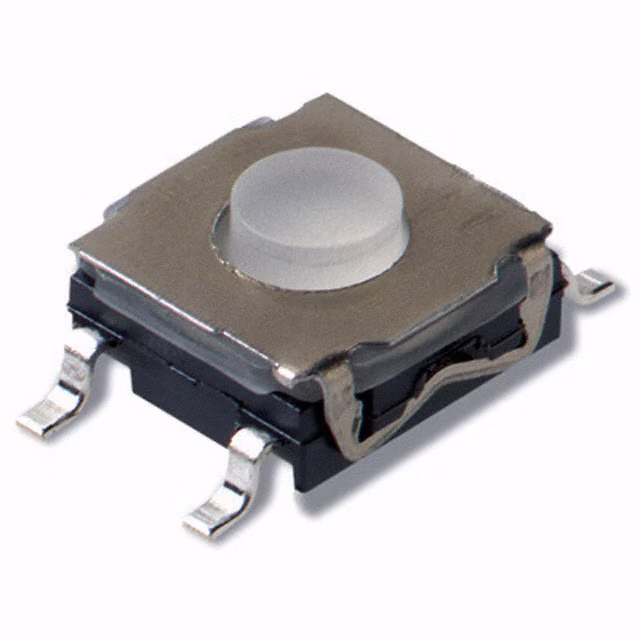

KSC222G LFSSWITCH TACTILE SPST-NO 0.05A 32V |
17,479 | - |
|
Datasheet | KSC | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Surface Mount | 3.50mm | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 200gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|

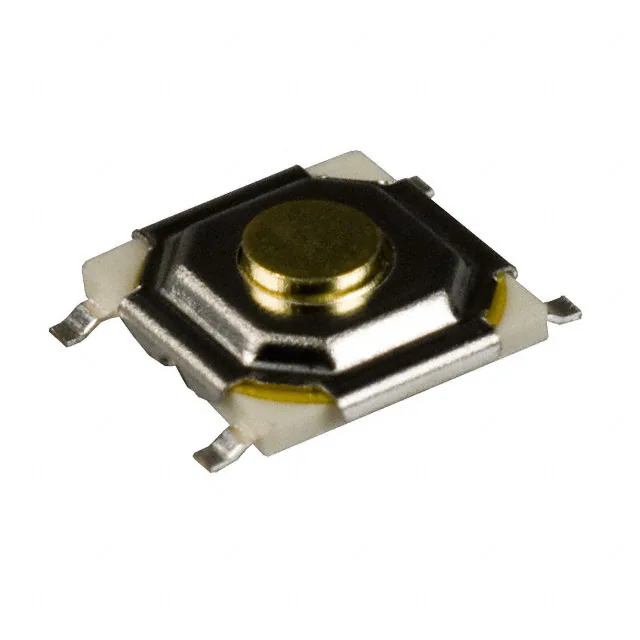

PTS525SM15SMTR2 LFSSWITCH TACTILE SPST-NO 0.02A 15V |
233,935 | - |
|
Datasheet | PTS525 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 1.50mm | - | Top Actuated | Gull Wing | 5.25mm x 5.25mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
