Tactile Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL3301CF260QJSWITCH TACTILE SPST-NO 0.05A 12V |
27,172 |
1+：$0.47200 10+：$0.40880 25+：$0.38112 100+：$0.34040 250+：$0.31530 |
|
Datasheet | TL3301 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 8.00mm | - | Top Actuated | J Lead | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|
B3F-1002SWITCH TACTILE SPST-NO 0.05A 24V |
56,844 |
1+：$0.35200 10+：$0.30720 25+：$0.28704 100+：$0.25688 250+：$0.23795 500+：$0.22458 1500+：$0.20532 3000+：$0.19450 6000+：$0.18474 |
|
Datasheet | B3F | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 150gf | - | - | -25°C ~ 70°C |
|
TL1105SPF160QSWITCH TACTILE SPST-NO 0.05A 12V |
12,001 |
1+：$0.24000 10+：$0.20640 25+：$0.19328 100+：$0.17320 250+：$0.16054 750+：$0.14647 1500+：$0.13838 3000+：$0.13095 5250+：$0.12546 |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole | 7.50mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
TL3365AF180QGSWITCH TACTILE SPST-NO 0.05A 12V |
34,468 |
1+：$0.16800 10+：$0.14480 25+：$0.13568 100+：$0.12184 250+：$0.11302 500+：$0.10666 1000+：$0.10066 |
|
Datasheet | TL3365 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Oval Button | Surface Mount | 2.50mm | - | Top Actuated | Gull Wing | 4.20mm x 3.20mm | Non-Illuminated | - | - | 180gf | - | - | -20°C ~ 70°C |
|
1-1825027-1SWITCH TACTILE SPST-NO 0.05A 24V |
52,049 |
1+：$0.23200 10+：$0.20080 25+：$0.18752 100+：$0.16808 250+：$0.15584 500+：$0.14706 1000+：$0.13883 3000+：$0.12708 5000+：$0.12219 |
|
Datasheet | FSMRAJ | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole, Right Angle | - | 8.35mm | Side Actuated | PC Pin | 7.11mm x 6.60mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 105°C |
|
EVQ-P7C01PSWITCH TACTILE SPST-NO 0.05A 12V |
41,984 |
1+：$0.24000 10+：$0.20800 25+：$0.19456 100+：$0.17440 250+：$0.16163 500+：$0.15251 1000+：$0.14399 2500+：$0.13373 |
|
Datasheet | EVQP7 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | - | Side Actuated | Gull Wing | 4.70mm x 2.90mm | Non-Illuminated | - | - | 220gf | - | Board Guide | -20°C ~ 70°C |
|
|
EVQ-P7L01PSWITCH TACTILE SPST-NO 0.05A 12V |
63,777 |
1+：$0.24000 10+：$0.20800 25+：$0.19456 100+：$0.17440 250+：$0.16163 500+：$0.15251 1000+：$0.14399 2500+：$0.13373 |
|
Datasheet | EVQP7 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | - | Side Actuated | Gull Wing | 4.70mm x 2.90mm | Non-Illuminated | - | - | 160gf | - | Board Guide | -20°C ~ 70°C |
|
EVP-AWCD4ASWITCH TACTILE SPST-NO 0.02A 15V |
84,160 |
1+：$0.24000 10+：$0.20640 25+：$0.19264 100+：$0.17272 250+：$0.16010 500+：$0.15107 1000+：$0.14263 2500+：$0.13246 5000+：$0.12556 |
|
Datasheet | EVPAW | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 0.60mm | - | Top Actuated | SMD (SMT) Tab | 3.00mm x 2.00mm | Non-Illuminated | - | - | 240gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
EVQ-P3401PSWITCH TACTILE SPST-NO 0.05A 12V |
4,946 | - |
|
Datasheet | EVQP3 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | - | Side Actuated | Gull Wing | 4.70mm x 2.90mm | Non-Illuminated | - | - | 220gf | - | - | -20°C ~ 70°C |
|
FSM2JSMAATRSWITCH TACTILE SPST-NO 0.05A 24V |
82,636 |
1+：$0.27200 10+：$0.23360 25+：$0.21856 100+：$0.19584 250+：$0.18147 500+：$0.17126 |
|
Datasheet | FSMJSMA | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|
TL3330AF260QGSWITCH TACTILE SPST-NO 0.05A 12V |
31,005 |
1+：$0.42400 10+：$0.36640 25+：$0.34176 100+：$0.30536 250+：$0.28288 500+：$0.26701 1000+：$0.25232 |
|
Datasheet | TL3330 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | 3.50mm | Side Actuated | Gull Wing | 7.80mm x 2.50mm | Non-Illuminated | - | - | 260gf | - | - | -30°C ~ 70°C |
|
SKRBAAE010SWITCH TACTILE SPST-NO 0.05A 12V |
10,905 |
1+：$0.12800 10+：$0.11520 25+：$0.10816 100+：$0.09720 250+：$0.09021 500+：$0.08514 1000+：$0.08034 2500+：$0.07450 5000+：$0.07049 |
|
Datasheet | SKRB | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 0.55mm | - | Top Actuated | SMD (SMT) Tab | 4.80mm x 4.80mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
|
SKRBACE010SWITCH TACTILE SPST-NO 0.05A 12V |
0 |
1+：$0.12800 10+：$0.11520 25+：$0.10816 100+：$0.09720 250+：$0.09021 500+：$0.08514 1000+：$0.08034 2500+：$0.07450 5000+：$0.07049 |
|
Datasheet | SKRB | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 0.55mm | - | Top Actuated | SMD (SMT) Tab | 4.80mm x 4.80mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|
B3F-4055SWITCH TACTILE SPST-NO 0.05A 24V |
453,805 | - |
|
Datasheet | B3F | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 7.30mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 260gf | - | - | -25°C ~ 70°C |
|

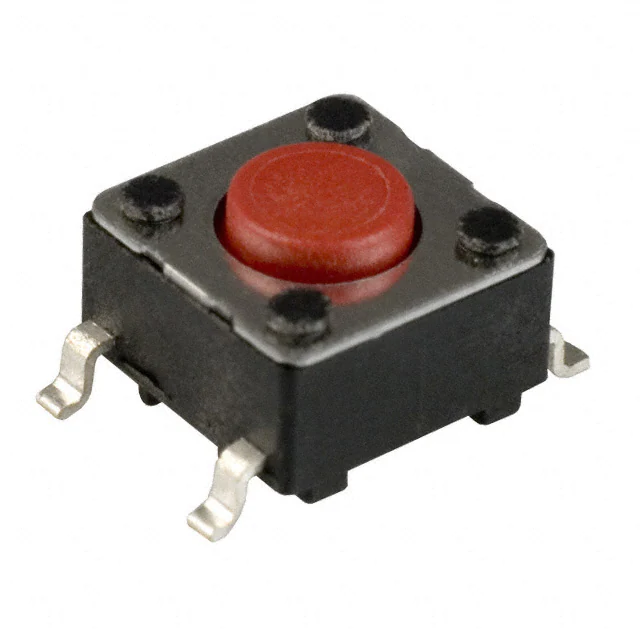

PTS645SK43SMTR92 LFSSWITCH TACTILE SPST-NO 0.05A 12V |
101,048 |
1+：$0.28800 10+：$0.25040 25+：$0.23392 100+：$0.20928 250+：$0.19395 500+：$0.18302 |
|
Datasheet | PTS645 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|
FSMSMSWITCH TACTILE SPST-NO 0.05A 24V |
36,152 |
1+：$0.28000 10+：$0.24240 25+：$0.22656 100+：$0.20288 250+：$0.18803 500+：$0.17744 1000+：$0.16755 3000+：$0.15350 5000+：$0.14766 |
|
Datasheet | FSMSM | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 4.57mm | - | Top Actuated | Gull Wing | 6.00mm x 3.50mm | Non-Illuminated | - | - | 180gf | - | - | -35°C ~ 85°C |
|

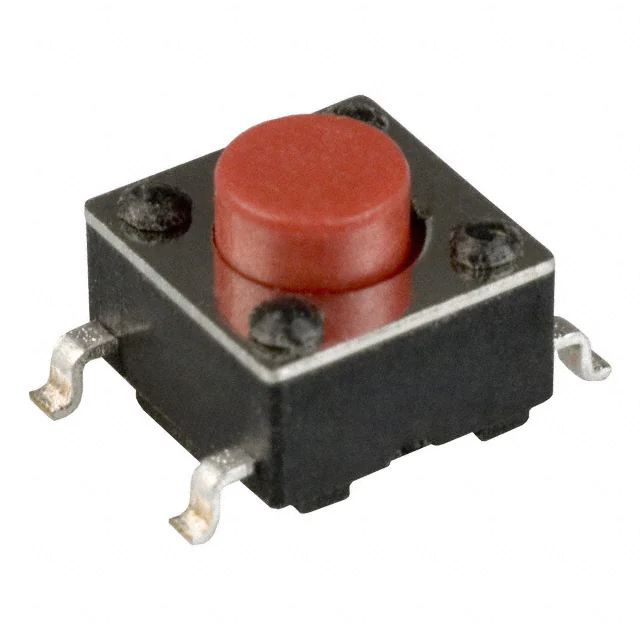

PTS645SK50SMTR92 LFSSWITCH TACTILE SPST-NO 0.05A 12V |
109,102 |
1+：$0.28800 10+：$0.25040 25+：$0.23392 100+：$0.20928 250+：$0.19395 500+：$0.18302 |
|
Datasheet | PTS645 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 5.00mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|
EVQ-PUC02KSWITCH TACTILE SPST-NO 0.05A 12V |
0 |
1+：$0.44800 10+：$0.38560 25+：$0.35936 100+：$0.32112 250+：$0.29744 500+：$0.28078 1000+：$0.26537 |
|
Datasheet | EVQPU | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | - | Side Actuated | Gull Wing | 6.40mm x 3.50mm | Non-Illuminated | - | - | 220gf | - | Board Guide | -20°C ~ 70°C |
|
EVQ-PLMA15SWITCH TACTILE SPST-NO 0.02A 15V |
20,720 | - |
|
Datasheet | EVQPL | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 1.50mm | - | Top Actuated | J Lead | 4.90mm x 4.90mm | Non-Illuminated | - | - | 265gf | - | Push Plate | -20°C ~ 70°C |
|
1301.9314.24SWITCH TACTILE SPST-NO 0.05A 12V |
12,489 | - |
|
Datasheet | LSH | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | IP40 | Tactile Feedback | -20°C ~ 70°C |
