Tactile Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EVQ-QWT02WSWITCH TACTILE SPST-NO 0.02A 15V |
3,685 | - |
|
Datasheet | EVQQW | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 2.50mm | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | - | - | 260gf | - | - | -20°C ~ 70°C |
|
EVP-BB2A9E000SWITCH TACTILE SPST-NO 0.02A 15V |
1,072 | - |
|
Datasheet | EVPBB | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 0.53mm | - | Top Actuated | Gull Wing | 2.60mm x 1.60mm | Non-Illuminated | - | - | 163gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
EVQ-PQHB55SWITCH TACTILE SPST-NO 0.02A 15V |
3,350 | - |
|
Datasheet | EVQPQ | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Snap Dome | Surface Mount | 0.55mm | - | Top Actuated | SMD (SMT) Tab | 4.50mm x 4.50mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|

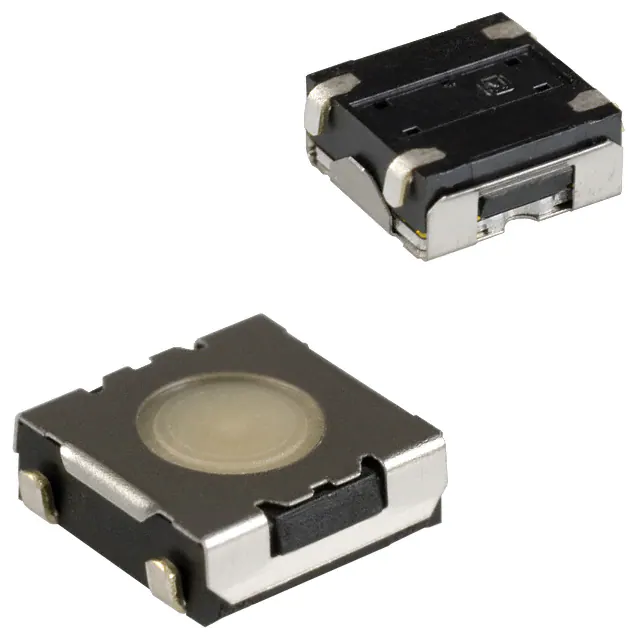

EVQ-QWN01WSWITCH TACTILE SPST-NO 0.02A 15V |
1,117 | - |
|
Datasheet | EVQQW | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 2.00mm | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | Grounding Pin | -20°C ~ 70°C |
|
EVQ-PC405KSWITCH TACTILE SPST-NO 0.02A 15V |
4,063 | - |
|
Datasheet | EVQPC | Cut Tape (CT) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole, Right Angle | - | 4.75mm | Side Actuated | PC Pin | 7.50mm x 6.95mm | Non-Illuminated | - | - | 100gf | - | - | -20°C ~ 70°C |
|
EVQ-P6UB55SWITCH TACTILE SPST-NO 0.02A 15V |
2,072 | - |
|
Datasheet | EVQP6 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 0.58mm | - | Top Actuated | J Lead | 4.10mm x 4.10mm | Non-Illuminated | - | - | 240gf | Dust Proof | Push Plate | -20°C ~ 70°C |
|
|
EVQ-PCP05KSWITCH TACTILE SPST-NO 0.02A 15V |
4,031 | - |
|
Datasheet | EVQPC | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole, Right Angle | - | 4.75mm | Side Actuated | PC Pin | 7.50mm x 6.95mm | Non-Illuminated | - | - | 130gf | - | - | -20°C ~ 70°C |
|
EVQ-PPHA25SWITCH TACTILE SPST-NO 0.05A 12V |
4,755 | - |
|
Datasheet | EVQPP | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 2.50mm | - | Top Actuated | Gull Wing | 6.00mm x 3.50mm | Non-Illuminated | - | - | 240gf | Dust Proof | - | -40°C ~ 85°C |
|
EVQ-PPRA25SWITCH TACTILE SPST-NO 0.05A 12V |
4,714 | - |
|
Datasheet | EVQPP | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 2.50mm | - | Top Actuated | Gull Wing | 6.00mm x 3.50mm | Non-Illuminated | - | - | 240gf | Dust Proof | Grounding Pin | -40°C ~ 85°C |
|
EVQ-PWBA15SWITCH TACT SPST-NO 0.02A 15V |
1,313 | - |
|
Datasheet | EVQPW | Tape & Reel (TR) | Obsolete | SPST-NO x 2 | Off-Mom-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 1.50mm | - | Top Actuated | J Lead | 6.40mm x 6.20mm | Non-Illuminated | - | - | 100/260gf | Dust Proof | - | -20°C ~ 70°C |
