Tactile Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

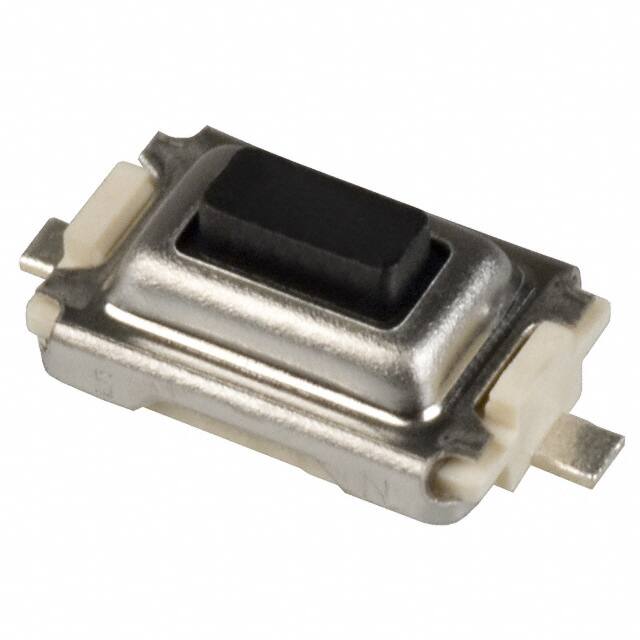

EVQ-PPFA25SWITCH TACTILE SPST-NO 0.05A 12V |
1,600 | - |
|
Datasheet | EVQPP | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 2.50mm | - | Top Actuated | Gull Wing | 6.00mm x 3.50mm | Non-Illuminated | - | - | 160gf | Dust Proof | - | -40°C ~ 85°C |
|
EVQ-P6EB35SWITCH TACTILE SPST-NO 0.02A 15V |
4,908 | - |
|
Datasheet | EVQP6 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 0.35mm | - | Top Actuated | J Lead | 4.10mm x 4.10mm | Non-Illuminated | - | - | 160gf | Dust Proof | - | -20°C ~ 70°C |
|
|
EVQ-P6GB35SWITCH TACTILE SPST-NO 0.02A 15V |
3,634 | - |
|
Datasheet | EVQP6 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 0.35mm | - | Top Actuated | J Lead | 4.10mm x 4.10mm | Non-Illuminated | - | - | 240gf | Dust Proof | - | -20°C ~ 70°C |
|
|
EVQ-P6JB35SWITCH TACTILE SPST-NO 0.02A 15V |
2,446 | - |
|
Datasheet | EVQP6 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 0.35mm | - | Top Actuated | J Lead | 4.10mm x 4.10mm | Non-Illuminated | - | - | 350gf | Dust Proof | - | -20°C ~ 70°C |
|
EVQ-PR3A10SWITCH TACT SPST-NO 0.02A 15V |
3,598 | - |
|
Datasheet | EVQPR | Tape & Reel (TR) | Obsolete | SPST-NO x 2 | Off-Mom-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 0.95mm | - | Top Actuated | J Lead | 6.00mm x 6.00mm | Non-Illuminated | - | - | 70/260gf | - | Push Plate | -20°C ~ 70°C |
|
EVQ-PRDA09SWITCH TACT SPST-NO 0.02A 15V |
1,587 | - |
|
Datasheet | EVQPR | Tape & Reel (TR) | Obsolete | SPST-NO x 2 | Off-Mom-Mom | 0.02A @ 15VDC | Without | Surface Mount | 0.90mm | - | Top Actuated | J Lead | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100/260gf | - | - | -20°C ~ 70°C |
|
|
EVQ-PRHA09SWITCH TACT SPST-NO 0.02A 15V |
4,141 | - |
|
Datasheet | EVQPR | Tape & Reel (TR) | Obsolete | SPST-NO x 2 | Off-Mom-Mom | 0.02A @ 15VDC | Without | Surface Mount | 0.90mm | - | Top Actuated | J Lead | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100/260gf | - | - | -20°C ~ 70°C |
|
EVQ-7P6B40SWITCH TACTILE SPST-NO 0.02A 15V |
3,768 | - |
|
Datasheet | EVQ-7P6 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Flush | Surface Mount | 0.43mm | - | Top Actuated | J Lead | 4.10mm x 4.10mm | Non-Illuminated | - | - | 102gf | - | - | -20°C ~ 70°C |
|
EVQ-QWM01WSWITCH TACTILE SPST-NO 0.02A 15V |
2,807 | - |
|
Datasheet | EVQQW | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 2.00mm | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | - | - | 130gf | - | Grounding Pin | -20°C ~ 70°C |
|
|
EVQ-QWK01WSWITCH TACTILE SPST-NO 0.02A 15V |
2,524 | - |
|
Datasheet | EVQQW | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 2.00mm | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | - | - | 260gf | - | Grounding Pin | -20°C ~ 70°C |
